1. Material Structures and Collaborating Layout
1.1 Inherent Properties of Constituent Phases

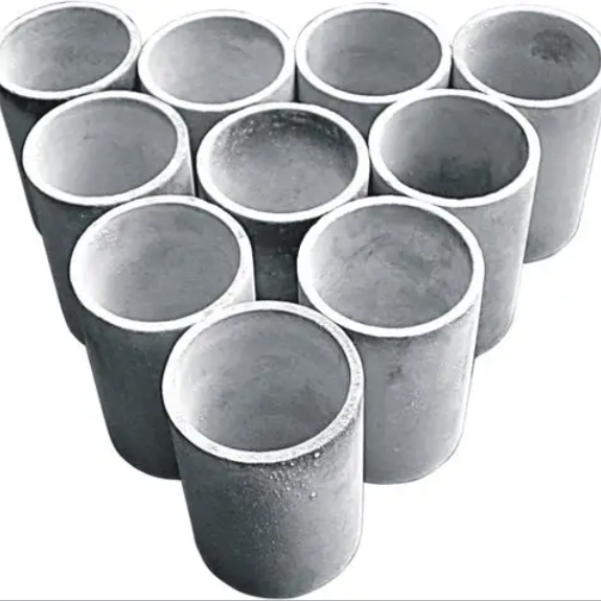

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si four N FOUR) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their extraordinary efficiency in high-temperature, harsh, and mechanically requiring environments.
Silicon nitride displays impressive crack toughness, thermal shock resistance, and creep security as a result of its special microstructure made up of extended β-Si five N four grains that make it possible for fracture deflection and bridging systems.
It preserves toughness approximately 1400 ° C and possesses a relatively reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal anxieties during fast temperature level changes.
On the other hand, silicon carbide provides premium firmness, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it ideal for unpleasant and radiative warmth dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) likewise confers exceptional electrical insulation and radiation resistance, helpful in nuclear and semiconductor contexts.
When combined into a composite, these products show corresponding habits: Si four N four enhances strength and damages resistance, while SiC enhances thermal management and put on resistance.
The resulting crossbreed ceramic achieves a balance unattainable by either phase alone, creating a high-performance structural product customized for extreme solution problems.
1.2 Composite Design and Microstructural Design
The layout of Si six N ₄– SiC compounds includes precise control over stage circulation, grain morphology, and interfacial bonding to optimize collaborating impacts.
Commonly, SiC is presented as great particulate support (varying from submicron to 1 µm) within a Si six N ₄ matrix, although functionally rated or layered designs are also explored for specialized applications.
During sintering– typically through gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC particles influence the nucleation and growth kinetics of β-Si three N four grains, commonly promoting finer and even more uniformly oriented microstructures.
This improvement improves mechanical homogeneity and decreases imperfection dimension, contributing to better strength and dependability.
Interfacial compatibility in between both phases is essential; since both are covalent ceramics with similar crystallographic symmetry and thermal development habits, they form systematic or semi-coherent borders that stand up to debonding under tons.
Additives such as yttria (Y TWO O ₃) and alumina (Al two O THREE) are used as sintering help to promote liquid-phase densification of Si three N ₄ without compromising the stability of SiC.
Nonetheless, extreme secondary phases can deteriorate high-temperature efficiency, so structure and processing need to be maximized to reduce glazed grain boundary movies.
2. Handling Methods and Densification Difficulties

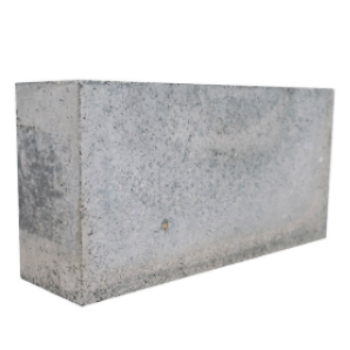

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
Top Quality Si Six N FOUR– SiC composites begin with uniform mixing of ultrafine, high-purity powders making use of wet sphere milling, attrition milling, or ultrasonic diffusion in natural or liquid media.
Attaining consistent diffusion is crucial to stop load of SiC, which can work as stress and anxiety concentrators and lower fracture toughness.
Binders and dispersants are included in maintain suspensions for forming techniques such as slip casting, tape casting, or shot molding, relying on the desired element geometry.
Environment-friendly bodies are then thoroughly dried out and debound to eliminate organics before sintering, a procedure calling for controlled heating prices to stay clear of breaking or deforming.
For near-net-shape manufacturing, additive strategies like binder jetting or stereolithography are arising, allowing complex geometries formerly unattainable with conventional ceramic handling.
These techniques need customized feedstocks with maximized rheology and green stamina, usually entailing polymer-derived ceramics or photosensitive materials filled with composite powders.
2.2 Sintering Devices and Phase Security
Densification of Si Two N FOUR– SiC compounds is challenging due to the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at useful temperatures.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y ₂ O FIVE, MgO) decreases the eutectic temperature level and improves mass transportation through a short-term silicate thaw.
Under gas pressure (commonly 1– 10 MPa N TWO), this melt facilitates rearrangement, solution-precipitation, and final densification while subduing decomposition of Si four N FOUR.
The presence of SiC affects viscosity and wettability of the fluid stage, possibly changing grain development anisotropy and last texture.
Post-sintering heat treatments may be put on take shape recurring amorphous stages at grain limits, enhancing high-temperature mechanical homes and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely made use of to confirm stage pureness, absence of unfavorable additional phases (e.g., Si ₂ N TWO O), and uniform microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Strength, Sturdiness, and Exhaustion Resistance
Si Five N FOUR– SiC composites show superior mechanical performance contrasted to monolithic porcelains, with flexural strengths going beyond 800 MPa and crack strength worths getting to 7– 9 MPa · m ONE/ TWO.
The enhancing impact of SiC particles impedes dislocation activity and fracture proliferation, while the lengthened Si four N ₄ grains continue to supply toughening through pull-out and bridging mechanisms.
This dual-toughening technique results in a material very resistant to influence, thermal cycling, and mechanical exhaustion– crucial for rotating components and structural elements in aerospace and energy systems.
Creep resistance remains superb approximately 1300 ° C, credited to the stability of the covalent network and minimized grain border moving when amorphous stages are lowered.
Hardness values usually range from 16 to 19 GPa, supplying exceptional wear and erosion resistance in unpleasant environments such as sand-laden circulations or sliding get in touches with.
3.2 Thermal Management and Ecological Sturdiness
The enhancement of SiC substantially raises the thermal conductivity of the composite, usually doubling that of pure Si six N ₄ (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC material and microstructure.
This improved warmth transfer ability enables a lot more effective thermal management in elements revealed to intense localized home heating, such as combustion linings or plasma-facing components.
The composite keeps dimensional security under high thermal gradients, standing up to spallation and fracturing due to matched thermal expansion and high thermal shock specification (R-value).
Oxidation resistance is another vital advantage; SiC creates a safety silica (SiO TWO) layer upon direct exposure to oxygen at elevated temperatures, which further densifies and seals surface area flaws.
This passive layer protects both SiC and Si Four N ₄ (which also oxidizes to SiO ₂ and N ₂), ensuring lasting durability in air, heavy steam, or burning atmospheres.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Solution
Si Two N FOUR– SiC composites are increasingly deployed in next-generation gas generators, where they enable greater running temperatures, improved gas performance, and decreased air conditioning requirements.
Elements such as generator blades, combustor liners, and nozzle overview vanes benefit from the product’s capability to withstand thermal biking and mechanical loading without considerable destruction.
In atomic power plants, particularly high-temperature gas-cooled activators (HTGRs), these composites serve as gas cladding or architectural assistances because of their neutron irradiation tolerance and fission product retention ability.
In commercial settings, they are made use of in molten metal handling, kiln furnishings, and wear-resistant nozzles and bearings, where conventional metals would fail prematurely.
Their lightweight nature (density ~ 3.2 g/cm ³) also makes them appealing for aerospace propulsion and hypersonic vehicle parts subject to aerothermal home heating.
4.2 Advanced Production and Multifunctional Combination
Emerging research study focuses on establishing functionally rated Si ₃ N FOUR– SiC frameworks, where make-up differs spatially to optimize thermal, mechanical, or electromagnetic buildings across a single component.
Crossbreed systems integrating CMC (ceramic matrix composite) designs with fiber support (e.g., SiC_f/ SiC– Si Four N FOUR) press the boundaries of damages resistance and strain-to-failure.
Additive production of these compounds makes it possible for topology-optimized heat exchangers, microreactors, and regenerative cooling channels with inner latticework structures unattainable via machining.
Moreover, their inherent dielectric residential properties and thermal stability make them candidates for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands expand for materials that execute reliably under extreme thermomechanical lots, Si four N ₄– SiC composites stand for a crucial improvement in ceramic engineering, combining robustness with performance in a solitary, lasting platform.
In conclusion, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the strengths of two advanced ceramics to create a crossbreed system capable of flourishing in one of the most serious functional environments.
Their continued advancement will certainly play a central duty in advancing tidy energy, aerospace, and commercial innovations in the 21st century.
